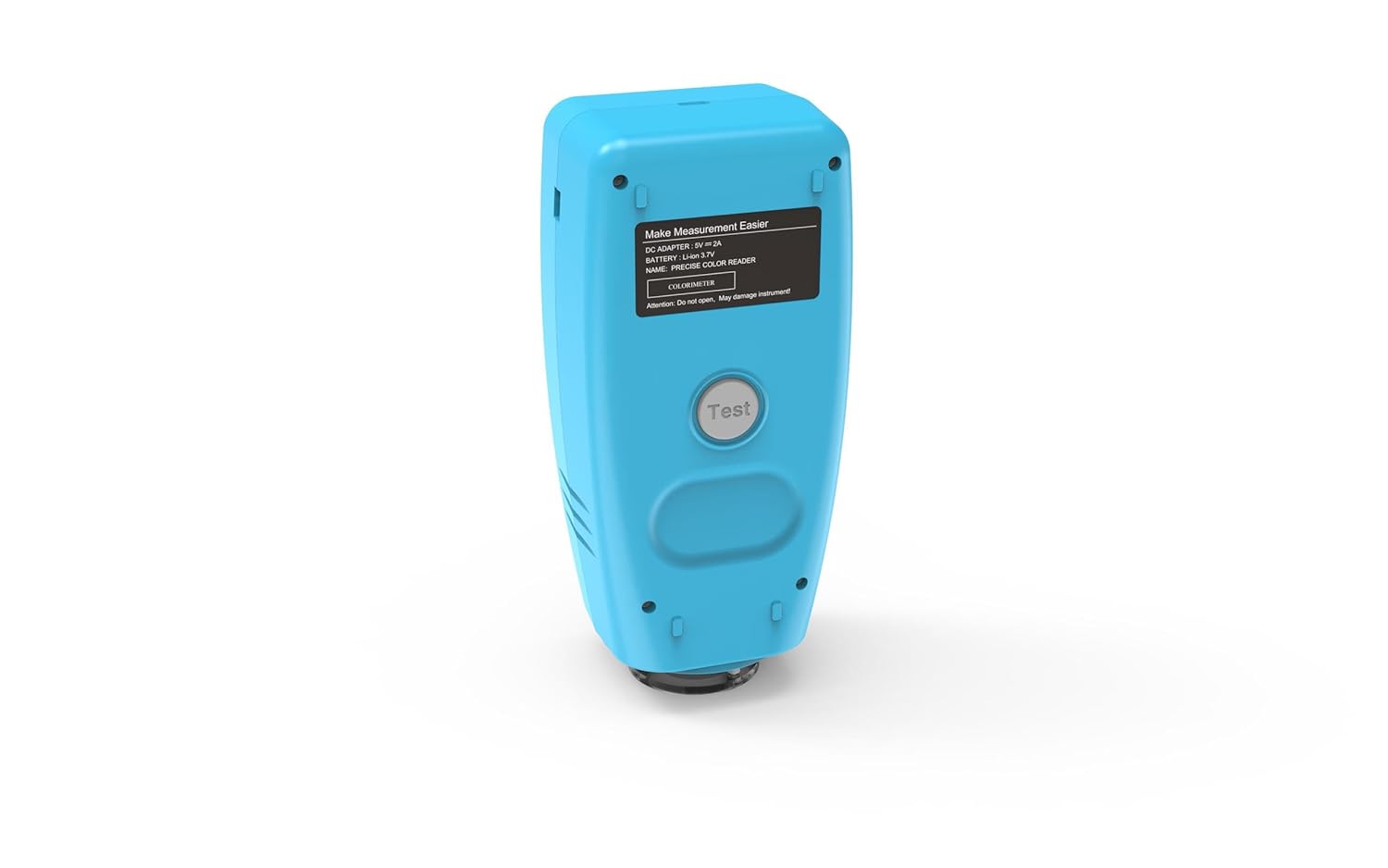

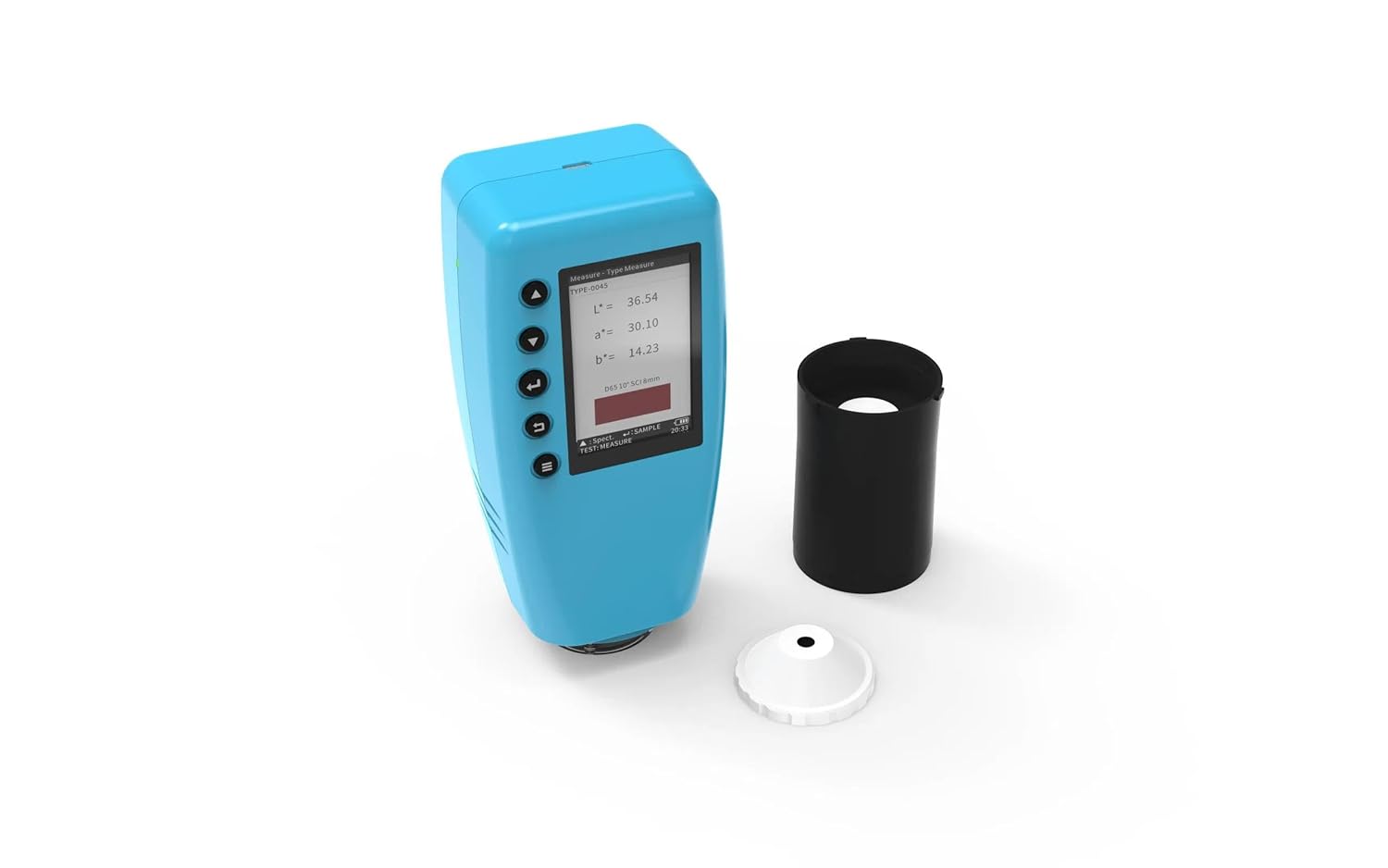

New Portable Simplified Colorimeter WR10QC Digital Color Reader, Apertures 8mm, Color Simulation, ΔE*ab<0.1, CIELAB, Wavelength: 400-700nm

Introduction The instrument applies to the color quality control, color difference control, color difference analysis, sampling testing and online testing for industries as textile, printing and dyeing, garments, shoes, leather, chemical, plastic, pigment, paint, ink, printing, metal, photography and toys etc., as well as to the auxiliary color matching during the processes as injection, inking, painting and spraying coating etc. Specification Model WR-10QC Color Space CIELAB Color Difference Formula E*ab Aperture 4mm Illumination Condition CIE Recommendation：8/d Light Source D65 Sensor Photodiode array Observer CIE 10 Standard observer Wavelength: 400nm-700nm; Interval: 10nm Reflectivity: 0-200%; Resolution: 0.01% Measurement Range L: 0 to 100 Repeated Accuracy E<0.07 Table Difference E<0.4 Resolution: 0.01 Measurement Interval 1.0 Sec. Storage Capacity Type sample data : 100 groups with testing sample data: 100 groups Lifetime of Bulb 5 years more than 1.6 million measurements Display Screen TFT true color 2.8inch@(16:9) Language English/Simplified Chinese Working Temperature 0℃-40℃（32℉-104℉） Storage Temperature -20℃-50℃（-4℉-122℉） Humidity Range Relative humidity less than 85%,without condensation Weight 700g Size 199*68*90mm Interface: TypeC/Bluetooth App: Android/Windows Battery Charging Time 8 hrs Battery Li-ion battery, 5000 times Measurement Standard Accessories White and Black Calibation Board/TypeC USB Cable/AC adapter/3000mAH Li-ion battery/User manual/Warranty card

• The instrument is well designed and features in precision, stability, easy handling, easy to learn and cost-effective;
• Aperture 8mm is a general-purpose, mostly for flat materials for its versatility, tiny consistency, and stability;
• Color simulation function;
• Through accumulating years of designing and researching, it can be applicable in textile, printing and dyeing, clothing, footwear, leather, chemicals, plastics, film, pigments, paints, inks, metal, photography, toys, food, medicine and other industry color quality control, color control, color analysis, sample testing, production line testing, also suitable for injection molding, ink, paint, spray and other auxiliary color.
